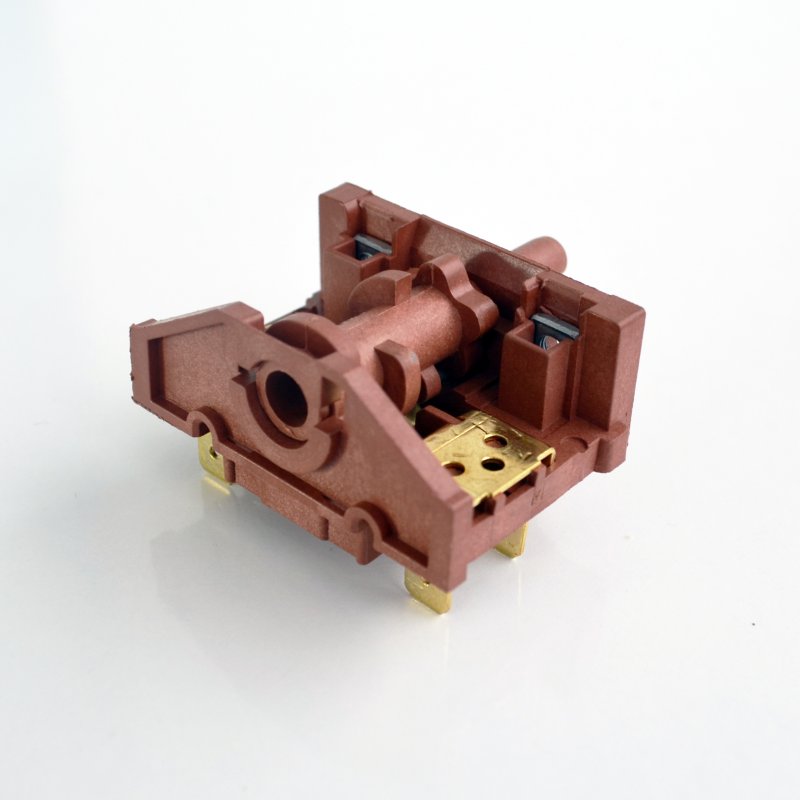

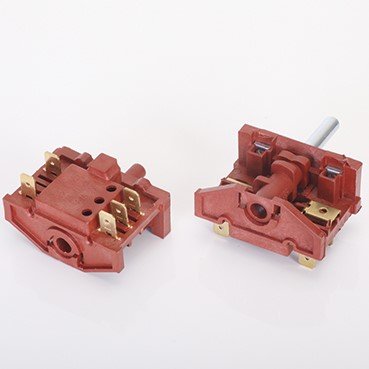

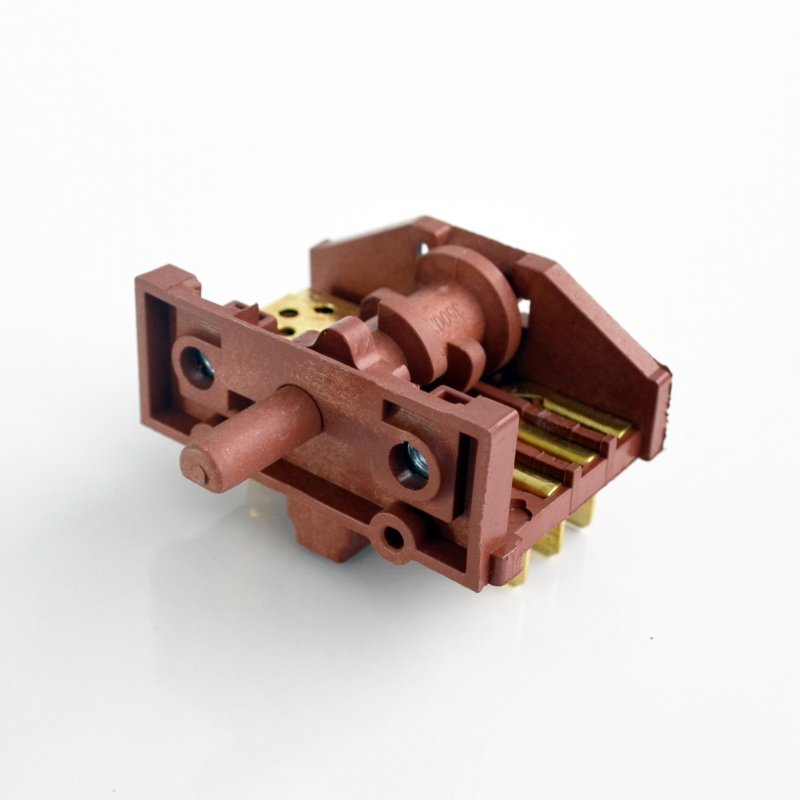

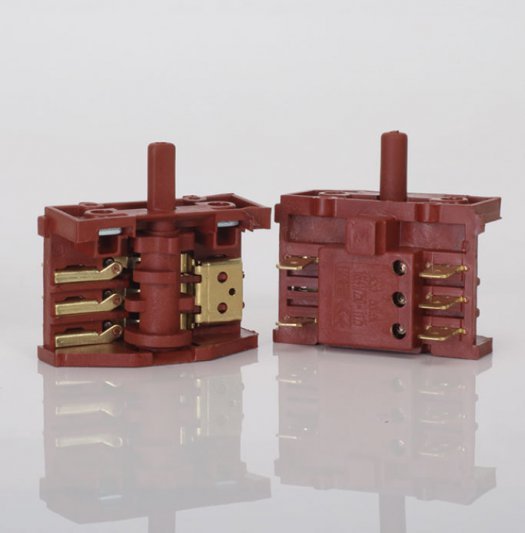

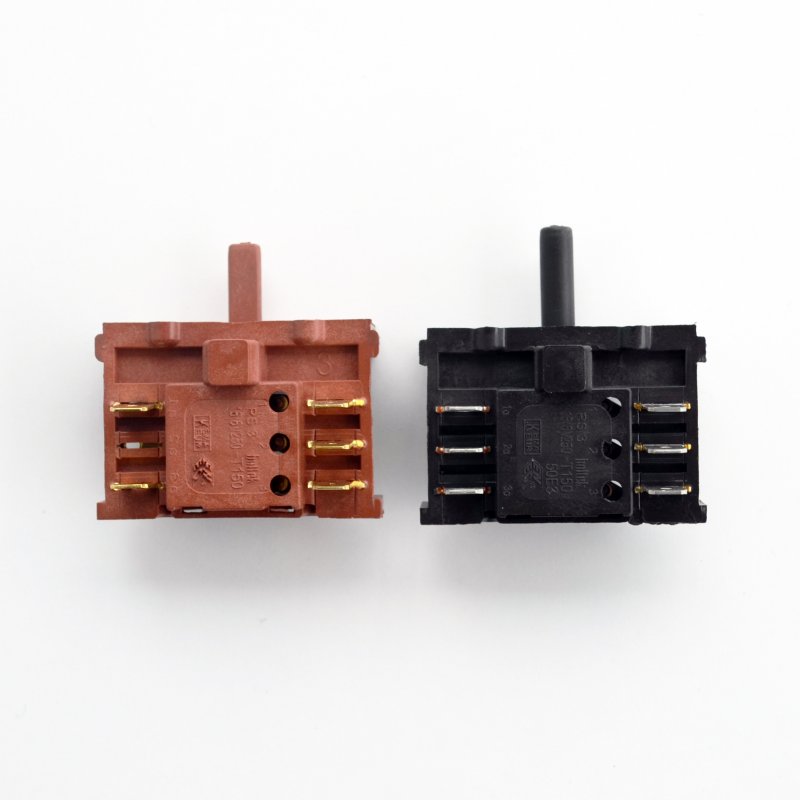

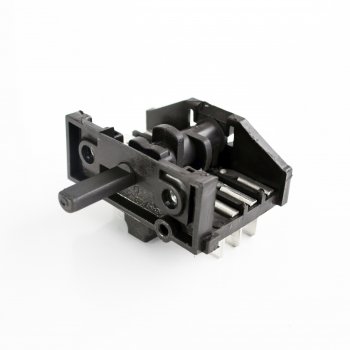

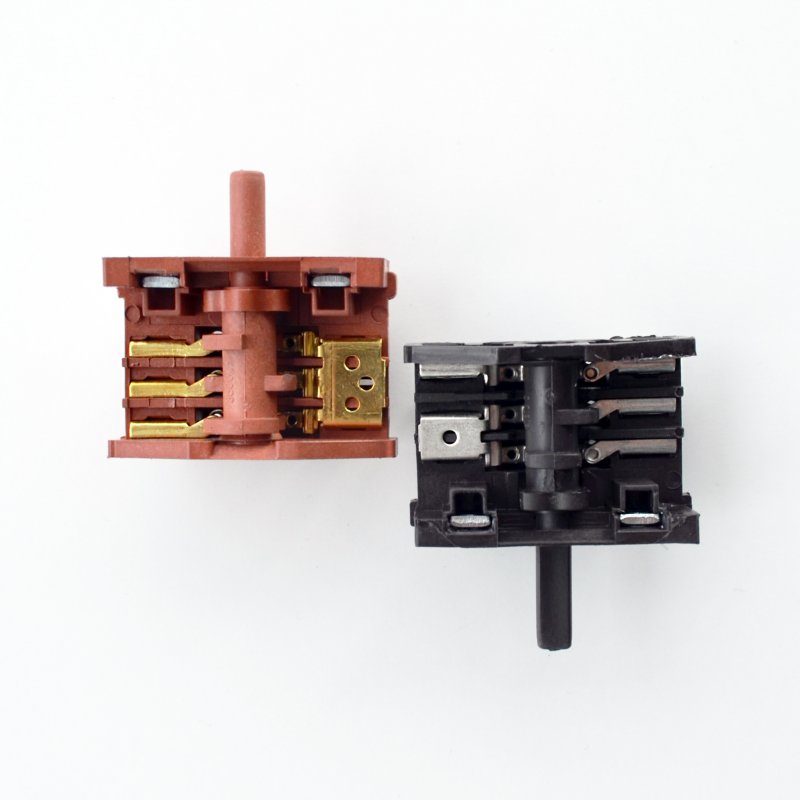

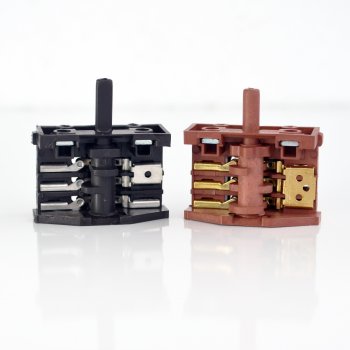

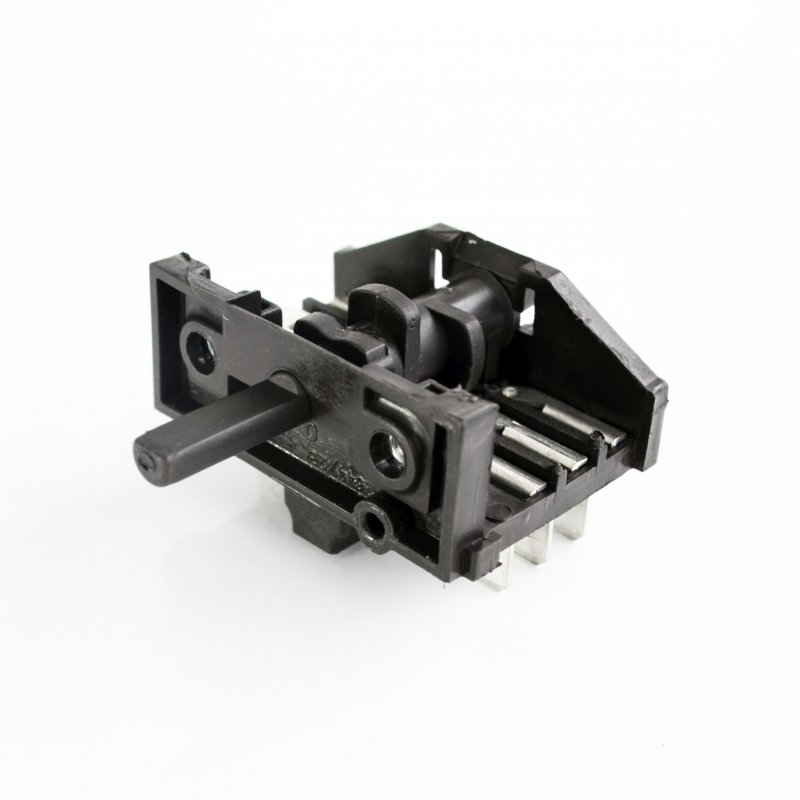

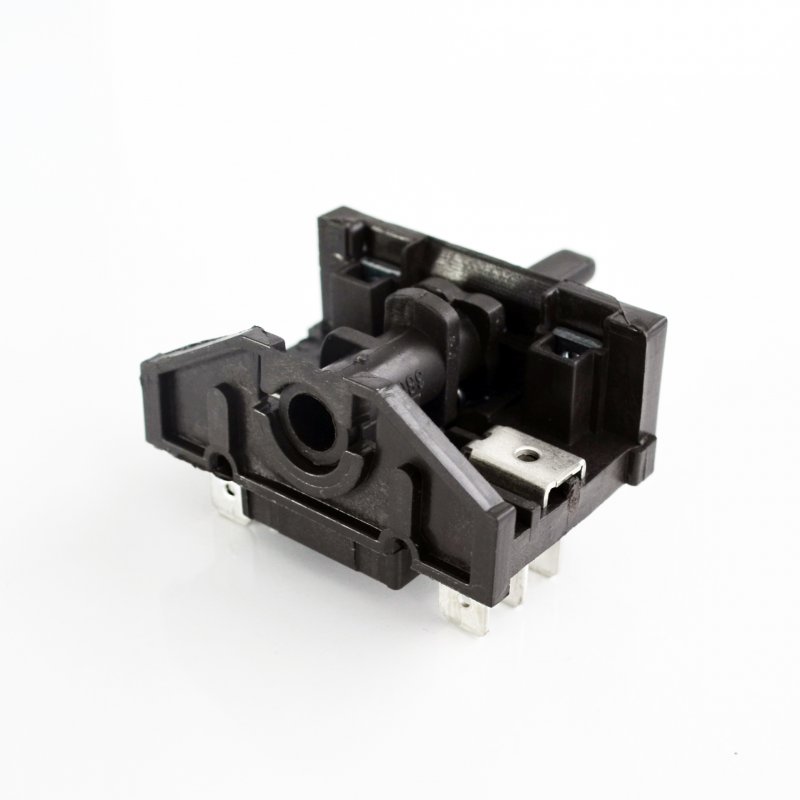

RS Series Rotary Switch 3-Pole

RS Series Rotary Switch 3-Pole
RS Series Rotary Switch 3-Pole RS Series Rotary Switch 3-Pole RS Series Rotary Switch 3-Pole RS Series Rotary Switch 3-Pole RS Series Rotary Switch 3-Pole RS Series Rotary Switch 3-Pole RS Series Rotary Switch 3-Pole RS Series Rotary Switch 3-Pole RS Series Rotary Switch 3-Pole

Temperature Rise (Terminals) is Life Max. 55°K

Flame Retardancy; UL940

Terminals; Brass 6.3 x 0.8 mm

Electrical Rating; 10A / 16A 250VAC

Electrical Life; 10.000 / 30 E3 / 50 E3

Temperature Rating; 125°C or 150°C

Glow Wire Test; 850 °C

Shaft Dimensions; Ø 6 mm / 4.6 mm

With nut and without nut montage type options

Available contact diagrams

With metal or plastic shafts are available.
