What are the Key Features of our Rocker Switches ?

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionaly, it has different functions such as 3 positions, button, changeover too.

Rocker Switches constitute the actuation function that can be pressed at both ends, like a seesaw to activate or disconnect the electrical circuit via the button. Sometimes known as a seesaw switch. The long-life of the seesaw system is a very important function for a quality product.

Key Features of our Rocker Switches

There are some special production rules in order to provide high mechanical strength in a quality way. For instance; Welded Silver Contact components should be used in operating system of the contacts of Rocker Switches. This feature provides an extra advantage to gain greater efficiency. In this way, the product life and quality level of rocker switches increases to the highest level.

Another important issue is that the material used for the degree of non-flammability has a melting property against the high temperature.

While this degree is accepted as 850°C in international standards, the fact that the material used does not burn at 850°C is one of the most important criterions that shows the quality of the material used. You can find the flammability test video, we made in our factory for the flammability test of 850°C in the R&D section of our web site.

Temperature Limit T125/55:

T125°C: Ambient temperature of the rocker ''body plastic material'' working value.

T55°C: Ambient temperature of the rocker ''button plastic'' working value.

850°C Category to Heat and Fire: Glow-wire test resistance value of rocker body plastic material (no flame - extinction)

The plastic partitions between the contacts are important for safety. Because it eliminate the possibility of errors during the mounting and it is an element that increases electrical safety.

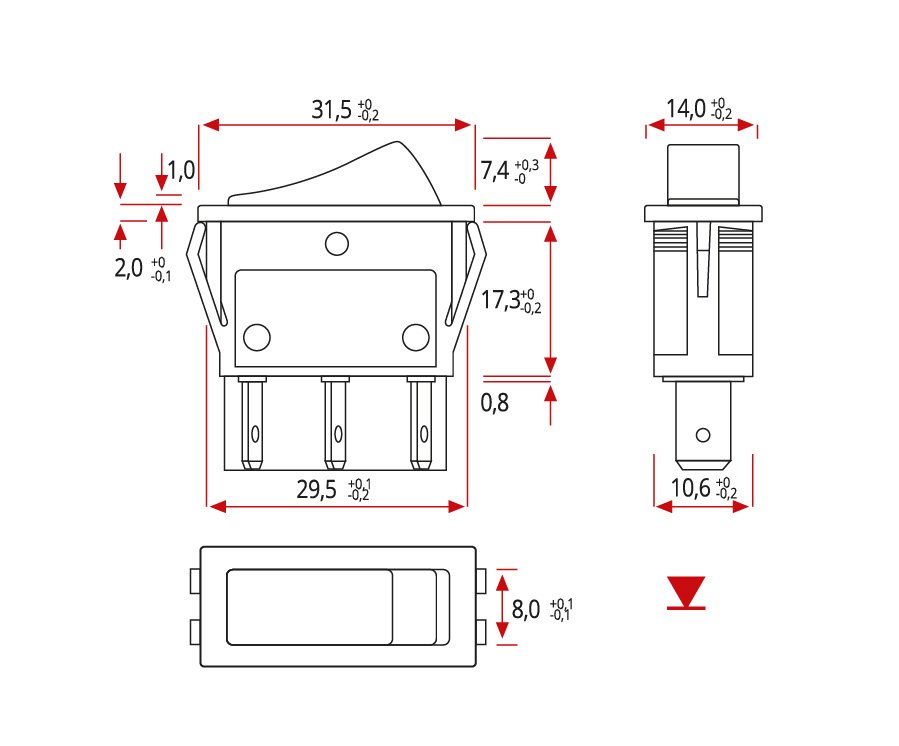

Dimensions of the product must be absolutely compatible with the panel dimension you will use. It must be ensured that the rocker switch fits exactly on the product panel used. You can see a sample product dimensions below;

Our Rocker Switch Series are Single Pole (DF), Double Pole (DS) and 2x Single Pole (DB) in our product group. Electrical circuit diagrams can vary according to needs. In addition to our diagram options, you can also see ampere value options and temperature value options in the same table. Identification of each product is made easy with the help of product codes according to the electrical diagram. You can find our electrical scheme options for each product group in our products section as ''DF Opitons & Info Charts'', ''DB Opitons & Info Charts'', ''DS Opitons & Info Charts''.
